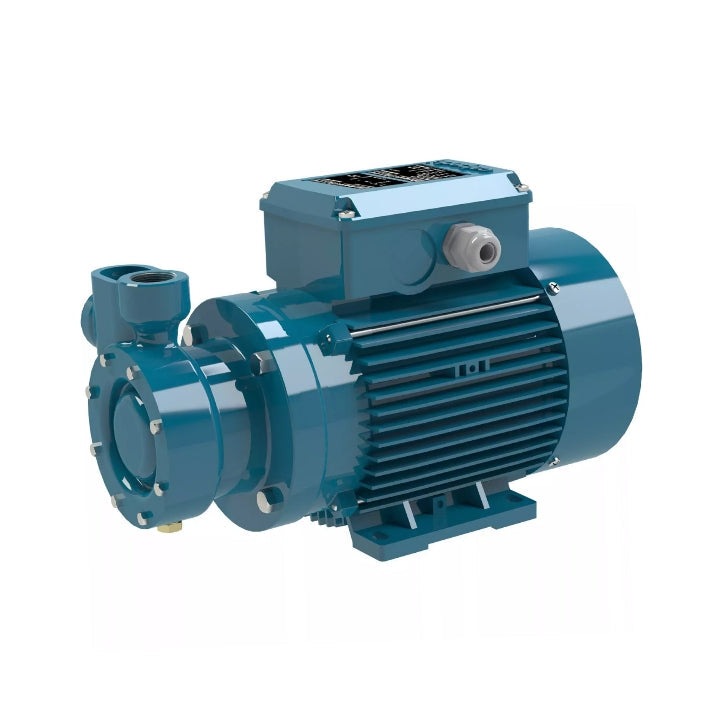

T 76/A 1.1kW, 400V

Peripheral pumps with brass impeller.

Peripheral monobloc electric pumps T, TP: version with pump body and lantern bracket made of cast iron. For clean liquids without abrasive particles, without suspended solids, non-explosive, non-aggressive to pump materials. Thanks to their reduced dimensions, these pumps are very suitable for installation in refrigeration and air conditioning machines and equipment, circulation systems, and boiler power supply.

SKU : CA112.00031

Vendor : CALPEDA

Specifications

Max head [m] 70

Max flow [l/min] 60

Recommended head H [m] 62

Recommended flow Q [l/min] 20

Voltage [V] 400

Motor power P2 [kW] 1.1

Max current [A] 3.1

Max suction height [m] -

Suction connection ["] 1 1/4

Discharge connection ["] 1 1/4

Dĺžka kábla [m] -

Impeller material Brass

Motor speed control No

Integrated pressure unit No

Dry-run protection No

Max medium temperature [°C] 90

IP rating 54

Pressure switch [MPa] No

Pressure tank [l] No

Warranty (months) 2 years

Vrátane DPH

Out of stock
