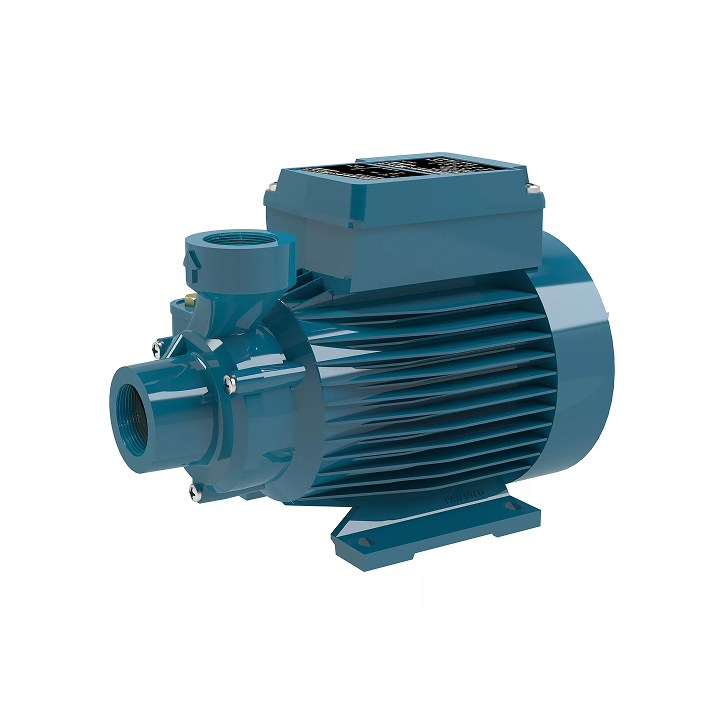

CT 61/A 0.33kW, 400V

Peripheral pumps with brass impeller.

Monoblock electric pumps with peripheral impeller. Compact, patented design with motor housing and pump side wall in one piece. Protected against water entering the motor from the outside. CT: version with cast iron pump housing. For clean liquids without abrasive substances, without suspended substances, non-explosive, non-aggressive to pump materials. For increasing pressure in water pipes. Thanks to their smaller dimensions, these pumps are very suitable for installation in refrigeration and air conditioning machines and equipment, circulation systems.

SKU : CA112.00011

Vendor : CALPEDA

Specifications

Max head [m] 48

Max flow [l/min] 38.3

Recommended head H [m] 26.5

Recommended flow Q [l/min] 20

Voltage [V] 400

Motor power P2 [kW] 0.33

Max current [A] 1.1

Max suction height [m] -

Suction connection ["] 1

Discharge connection ["] 1

Dĺžka kábla [m] -

Impeller material Brass

Motor speed control No

Integrated pressure unit No

Dry-run protection No

Max medium temperature [°C] 60

IP rating 54

Pressure switch [MPa] No

Pressure tank [l] No

Warranty (months) 2 years

Vrátane DPH

Out of stock
