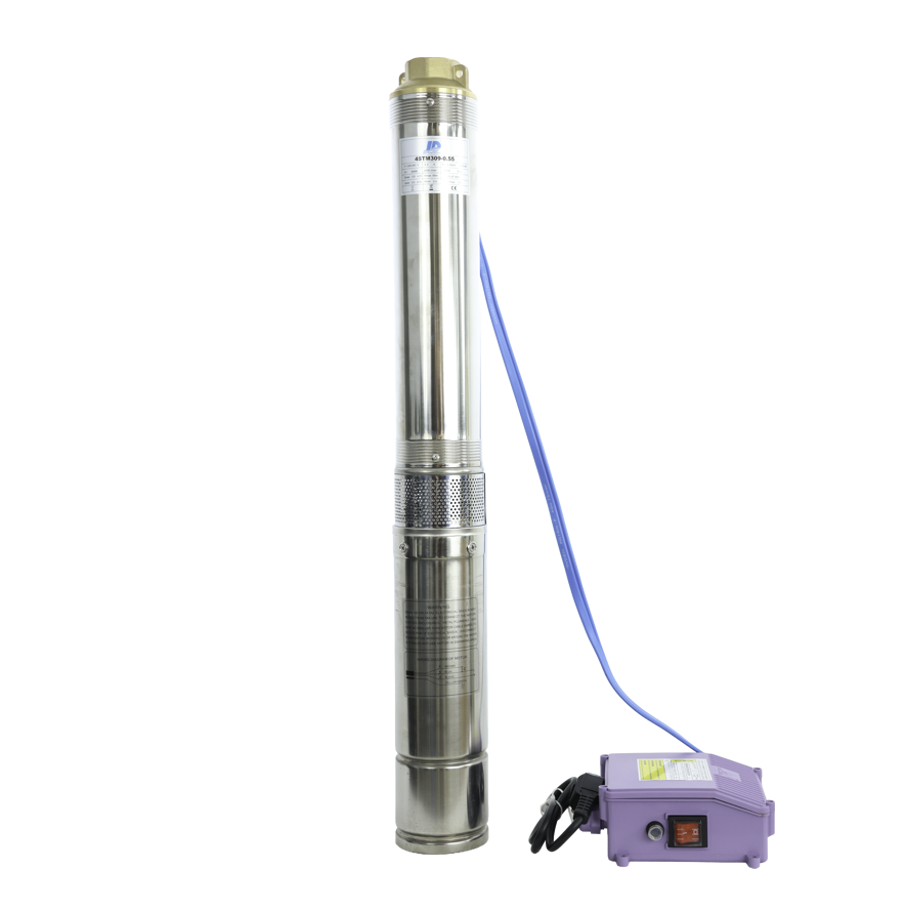

4STM316 1.1kW 230V 8.6A 1 1/2", cable 20m

4" (DN100mm) submersible pump with outer casing made of AISI 304 stainless steel.

Multi-purpose submersible pump, multistage type with floating impeller. Suitable for wells with a diameter of 4" and above. Designed for pumping clean and potable water for irrigation and water supply in households and industry.

SKU : JD213.00091

Vendor : JIADI

Specifications

Max head [m] 120

Max flow [l/min] 97

Recommended head H [m] 59

Recommended flow Q [l/min] 67

Voltage [V] 230

Motor power P2 [kW] 1.1

Max current [A] 8.6

Pump diameter (mm) 98

Max submersion depth (m) 70

Discharge connection ["] 1 1/2

Dĺžka kábla [m] 20

Impeller material Noryl

Check valve Zabudovaná

Max sand resistance (g/m3) 100

Capacitor box Ano

Motor speed control Suitable

Integrated pressure unit No

Dry-run protection No

Max medium temperature [°C] 35

Thermal protection built-in

IP rating 68

Pressure switch [MPa] No

Pressure tank [l] No

Warranty (months) 24

Vrátane DPH

In stock
