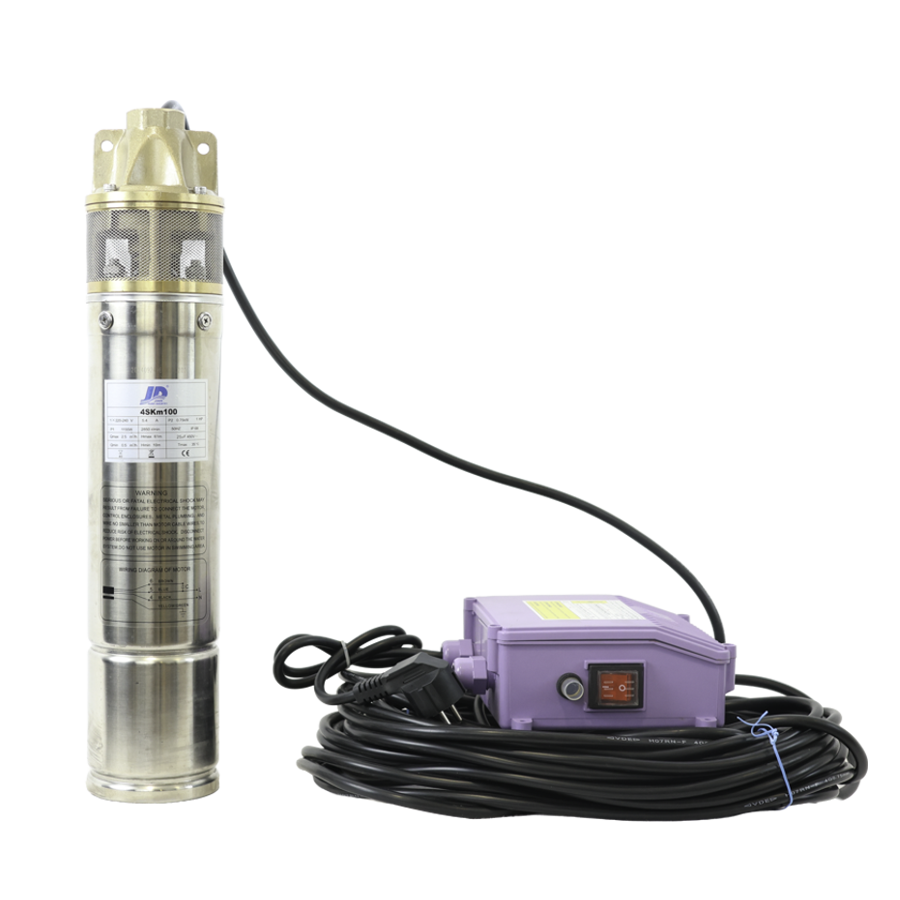

4SKM 100 0.75kW 230V 5.4A 1", cable 20m

4" (DN100mm) submersible pump with outer casing made of stainless non-toxic materials.

Multi-purpose submersible pump, multistage type with floating impeller. Suitable for wells with a diameter of 4" and above. Designed for pumping clean and potable water for irrigation and water supply in households and industry.

SKU : JD213.00011

Vendor : JIADI

Specifications

Max head [m] 61

Max flow [l/min] 41

Recommended head H [m] 36

Recommended flow Q [l/min] 25

Voltage [V] 230

Motor power P2 [kW] 0.75

Max current [A] 5.2

Pump diameter (mm) 93

Max submersion depth (m) 30

Discharge connection ["] 1

Dĺžka kábla [m] 20

Impeller material Brass

Check valve Zabudovaná

Max sand resistance (g/m3) 100

Capacitor box Ano

Motor speed control Suitable

Integrated pressure unit No

Dry-run protection No

Max medium temperature [°C] 35

Thermal protection built-in

IP rating 68

Pressure switch [MPa] No

Pressure tank [l] No

Warranty (months) 24

Vrátane DPH

In stock
