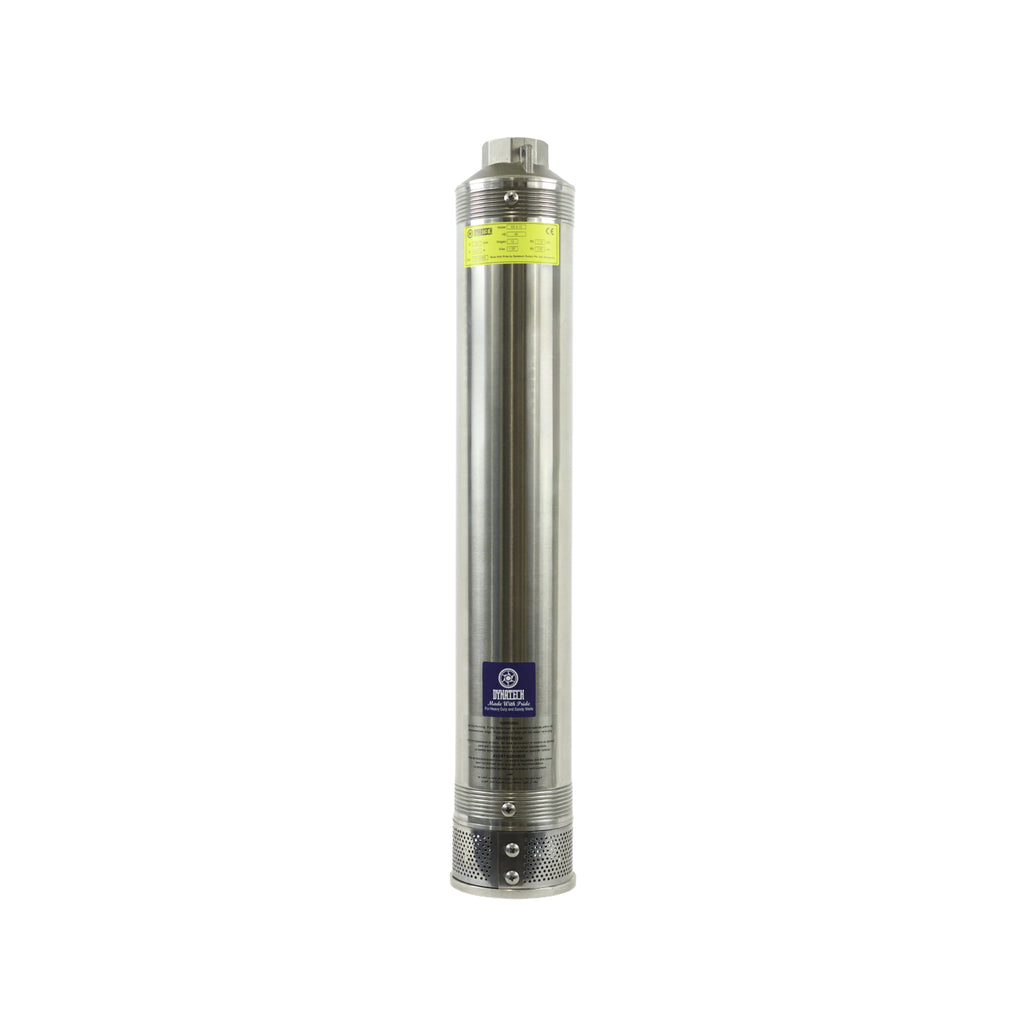

4SS 8-15 hydraulics 2" (2.2kW)

4" (DN100mm) self-contained submersible pump for heavy and sandy wells for demanding applications.

Use for water supply systems, civil and industrial applications, irrigation.

SKU : DY215.00131

Vendor : DYNATECH

Specifications

Max head [m] 87

Max flow [l/min] 180

Recommended head H [m] 61

Recommended flow Q [l/min] 120

Voltage [V] 230

Motor power P2 [kW] 2.2

Max current [A] 15.2

Pump diameter (mm) 97

Max submersion depth (m) 150

Discharge connection ["] 1 1/4

Dĺžka kábla [m] 20

Impeller material Polyformaldehyde (POM)

Check valve Zabudovaná

Max sand resistance (g/m3) 450

Capacitor box Ano

Motor speed control Suitable

Integrated pressure unit No

Dry-run protection No

Max medium temperature [°C] 35

Thermal protection built-in

IP rating 68

Pressure switch [MPa] No

Pressure tank [l] No

Warranty (months) 24
