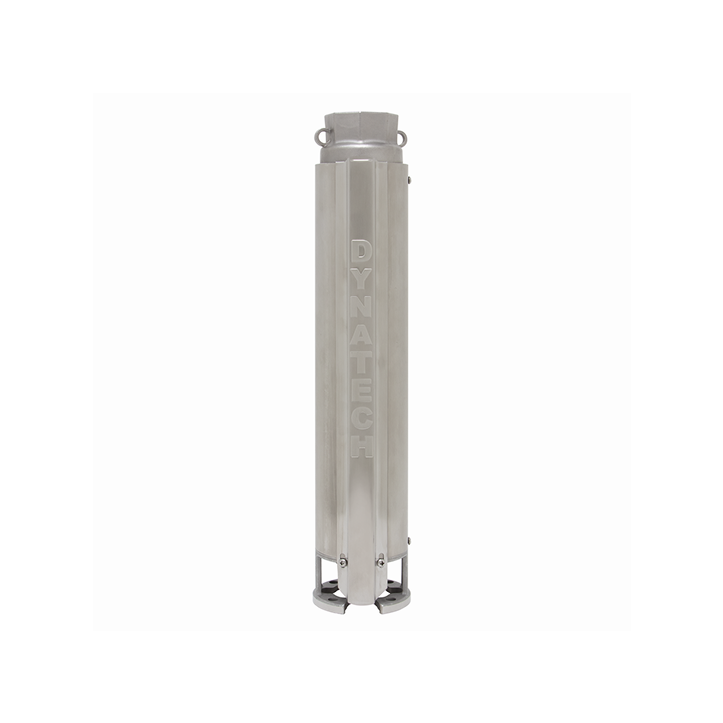

4DS 1-19 hydraulics 1 1/4" (0.55kW)

4" (DN100mm) submersible pump for heavy and sandy wells for demanding applications.

Use for water supply systems, civil and industrial applications, irrigation.

SKU : DY215.00011

Vendor : DYNATECH

Specifications

Max head [m] 126

Max flow [l/min] 20

Recommended head H [m] 86

Recommended flow Q [l/min] 15

Voltage [V] -

Motor power P2 [kW] -

Max current [A] -

Pump diameter (mm) 97

Max submersion depth (m) 150

Discharge connection ["] 1 1/4

Dĺžka kábla [m] -

Impeller material Glass-filled Noryl

Check valve Zabudovaná

Max sand resistance (g/m3) 250

Capacitor box -

Motor speed control -

Integrated pressure unit No

Dry-run protection No

Max medium temperature [°C] 35

Thermal protection -

IP rating -

Pressure switch [MPa] No

Pressure tank [l] No

Warranty (months) 24
