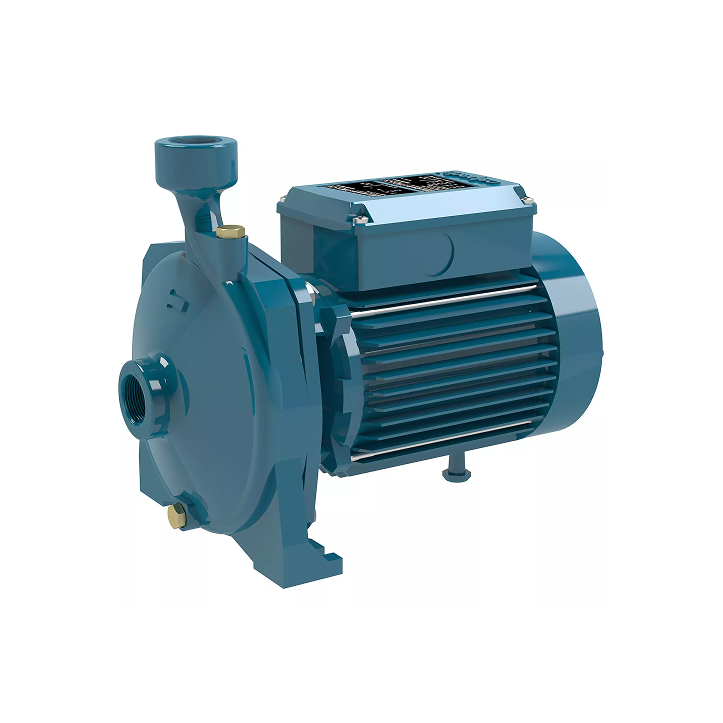

NM 12/D/B 2.2kW, 400V

Monobloc centrifugal pumps with one impeller, direct drive, induction electric motor with extended shaft directly connected to the pump (2900 rpm). Continuous operation. Total suction head up to 7 m.

Use for clean, non-abrasive liquids that are not harmful to the pump materials (maximum solids content 0.2%). Intended for water supply. Suitable for heating, air conditioning, cooling and circulation systems. For civil and industrial applications, irrigation.

SKU : CA2221.00301

Vendor : CALPEDA

Specifications

Max head [m] 41

Max flow [l/min] 220

Recommended head H [m] 37

Recommended flow Q [l/min] 140

Voltage [V] 400

Motor power P2 [kW] 2.2

Max current [A] 5.3

Suction connection ["] 2

Discharge connection ["] 1 1/4

Impeller material Brass

Max medium temperature [°C] 90

Thermal protection -

IP rating 54

Warranty (months) 24
