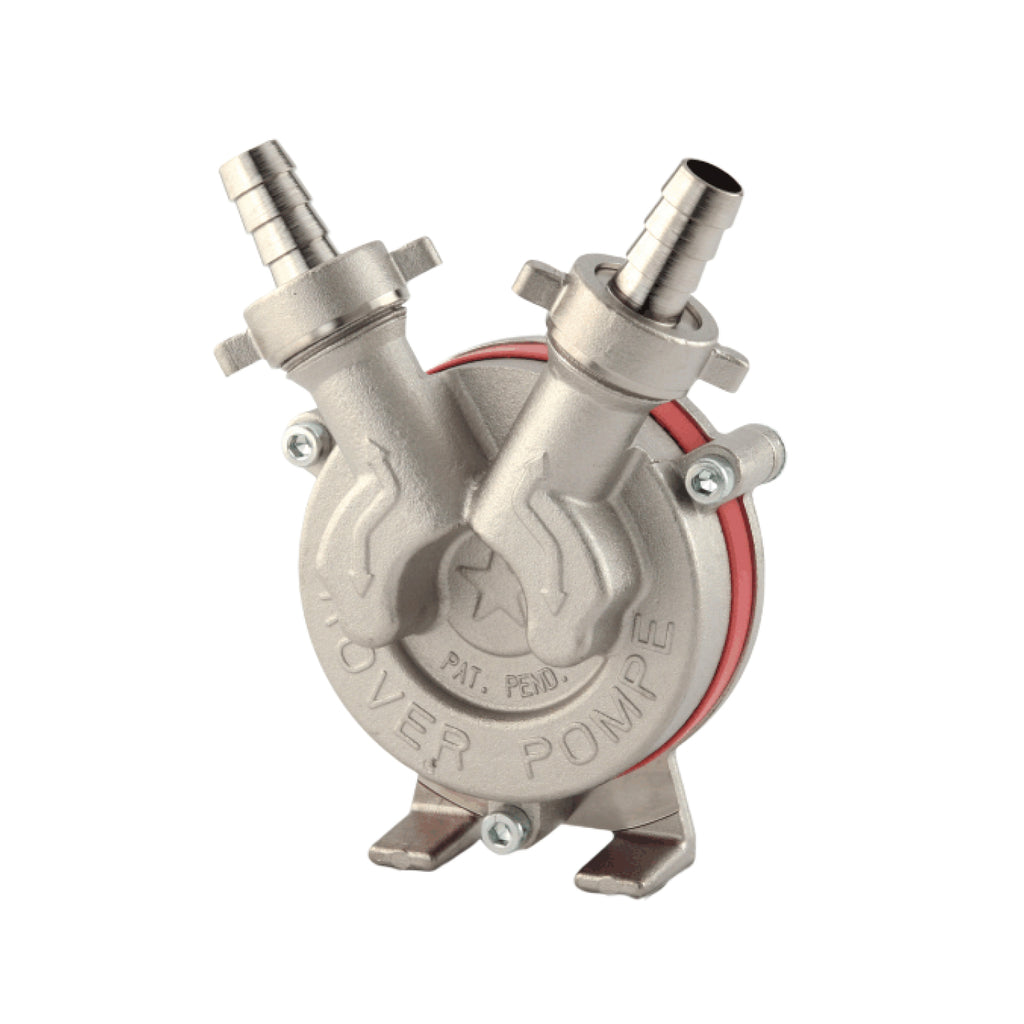

MARINA 20 0.3kW 24V

Self-priming liquid pump with star-shaped impeller, equipped with two directions of rotation as standard, with a high-efficiency motor. The special hydraulic geometry allows the pump to operate even in the presence of air bubbles in the suctioned liquid.

The liquid ring pump obtains its suction power by simply filling the pump housing through one of the hose connections. The suction power is active in both directions of rotation. The electric pumps of the MARINA MINI series are equipped with a brushed electric motor, powered by direct current, in the 12 V or 24 V version, for continuous operation (free-displacement pump) Electrical connection ATTENTION: before working on the pump, disconnect the electrical cable from the power source (battery, electrical panel, etc.) ATTENTION: the electrical connection and remote control must be carried out by competent personnel! Incorrectly carried out work can result in serious damage to property and people. Choose a 2-pole power cable with a minimum cross-section of 6 m2 and a maximum length of 3 meters. Remove the cover on the top of the pump by unscrewing the 2 Phillips head screws, thread the cable through the black grommet on the side of the pump, connect the cable to the terminal in the base plate, screw the cover back on.

SKU : RO71.00331

Vendor : ROVER

Specifications

Max head [m] 24

Max flow [l/min] 33.3

Voltage [V] 24

Motor power P2 [kW] 0.3

Suction connection ["] 3/4

Discharge connection ["] 3/4

Impeller material Bronze

Max medium temperature [°C] 35

Thermal protection -
