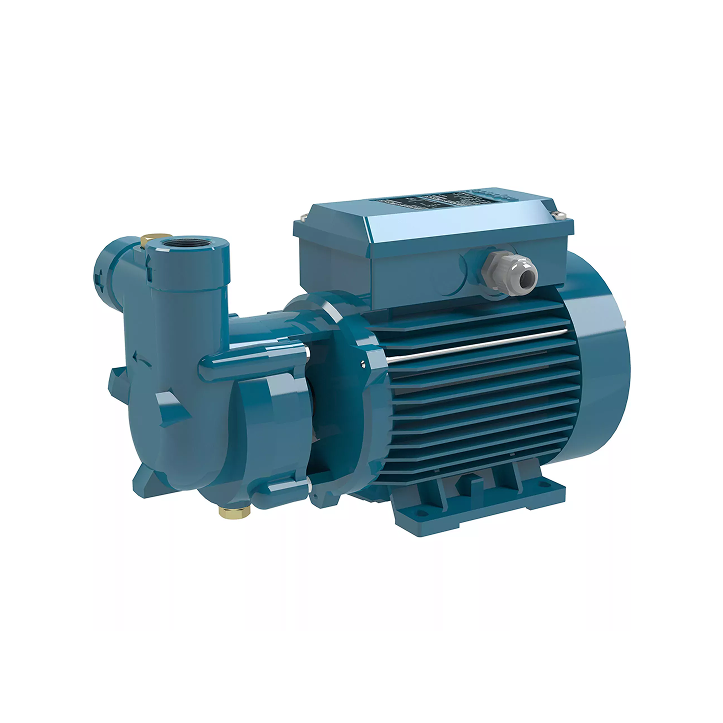

CA 90/A 0.55kW, 400V

Name: CA 90/A 0.55kW, 400V
Brand: CALPEDA
Price: 414.57 EUR
Availability: InStock

Self-priming liquid ring pumps.

Self-priming liquid ring pumps with star impeller and anti-blocking sealing ring.CA: version with pump housing and cast iron lantern bracket.For clean liquids without abrasive substances, without suspended solids, non-explosive, non-aggressive to pump materials.For water withdrawal from wells. For increasing pressure in the network.

SKU : CA111.00061

Vendor : CALPEDA

Specifications

Max head [m] 47

Max flow [l/min] 40

Recommended head H [m] 34

Recommended flow Q [l/min] 20

Voltage [V] 400

Motor power P2 [kW] 0.55

Max current [A] 1.7

Max suction height [m] 8

Suction connection ["] 1

Discharge connection ["] 1

Dĺžka kábla [m] -

Impeller material Brass

Motor speed control No

Integrated pressure unit No

Dry-run protection No

Max medium temperature [°C] 90

IP rating 54

Pressure switch [MPa] No

Pressure tank [l] No

Warranty (months) 2 years

Vrátane DPH

In stock

CA 90/A 0.55kW, 400V
