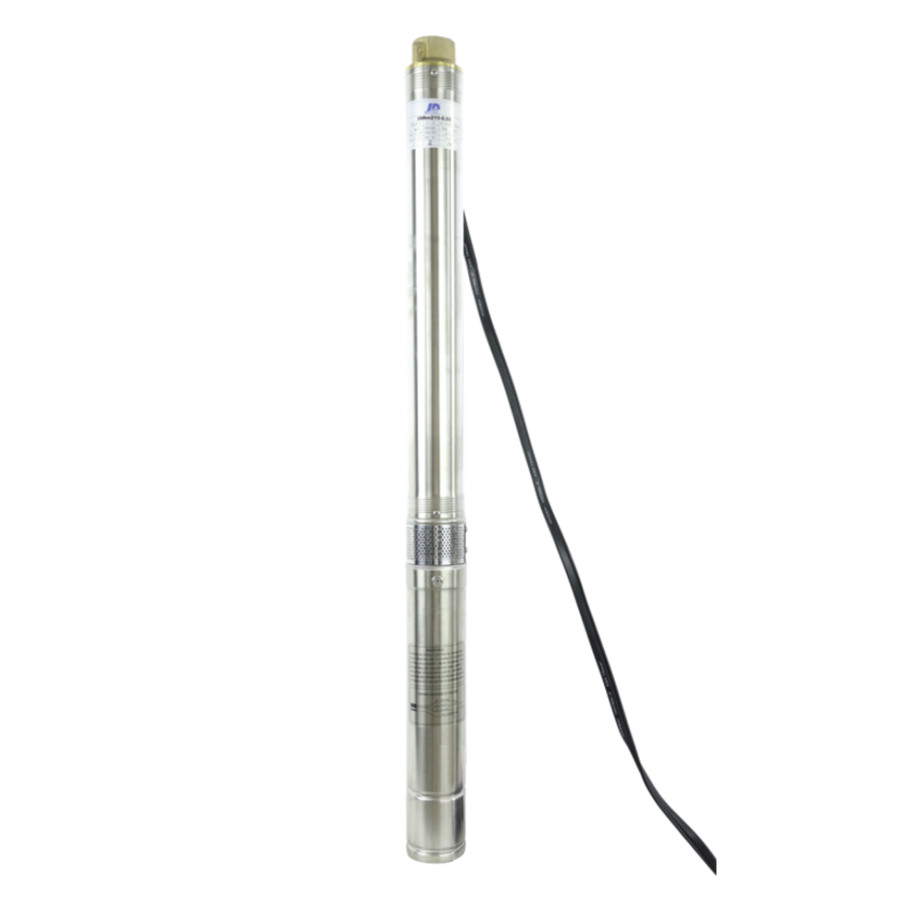

75QJ240 1.5kW 400V 4.7A 1 1/4"

3" (DN80mm) suitable for narrow, deep wells.

Use for water supply systems, irrigation. It is suitable for pumping water and non-aggressive, non-explosive liquids without abrasive and long-fiber impurities.

SKU : JD211.00081

Vendor : JIADI

Specifications

Max head [m] 133

Max flow [l/min] 63

Recommended head H [m] 109

Recommended flow Q [l/min] 30

Voltage [V] 400

Motor power P2 [kW] 1.5

Max current [A] 4.7

Pump diameter (mm) 75

Max submersion depth (m) 30

Discharge connection ["] 1 1/4

Dĺžka kábla [m] No

Impeller material Noryl

Check valve Zabudovaná

Max sand resistance (g/m3) 100

Motor speed control Suitable

Integrated pressure unit No

Dry-run protection No

Max medium temperature [°C] 35

Thermal protection built-in

IP rating 68

Pressure switch [MPa] No

Pressure tank [l] No

Warranty (months) 24

Vrátane DPH

In stock
